AI Skin Analyzer with Scalp Detection

AI 5D Skin & Scalp Analysis with Multi-Spectral Imaging

The Wikbeauty AI 5D Skin & Scalp Analyzer is a 2-in-1 imaging and analysis system that pairs a 3D facial imaging pod with a handheld microscopic probe for detailed skin and scalp examination. Built for beauty salons, skincare clinics, spas, and professional beauty centers, it captures not only surface-level skin conditions but also deeper skinbase-layer concerns such as spots, chloasma, visible redness, wrinkles, texture, large pores, and acne.

A 15.6" touchscreen, AI-assisted face recognition, and an automatic report-building workflow let operators move a client from scan to consultation-ready report in under a minute.

Product Highlights

• AI-powered 5D facial skin analysis
• Nine-spectrum multi-spectral imaging
• Comprehensive testing of 9 major skin items
• Handheld microscopic probe for skin and scalp examination
• 18-image full-face capture in a single pass (left, middle, and right angles)
• 15-second detection report with a recommended care plan
• AI face recognition with auto-focus dual camera
• Departmental analysis for acne, sensitivity, pigment, and aging concerns
• Facial microbiome analysis with grid positioning
• Scalp health assessment with 5 scalp indicators
• Moisture mapping, aging prediction, and photoaging simulation
• Weight and sleep wellness tracking alongside facial indicators
• Sun protection effectiveness comparison
• Multi-angle viewing, local magnification, and side-by-side before/after comparison
• Quantitative I–IV grading for key indicators with percentage-based reporting
• Customer file management with historical comparison
• 15.6" touchscreen with Android operating system
• WiFi connectivity
• Suitable for salons, skincare clinics, spas, and beauty centers

How the Wikbeauty AI 5D Skin & Scalp Analyzer Works

The main pod uses AI face recognition to automatically locate the detection area and capture 18 images across the left, middle, and right of the face in a single pass, without the client needing to reposition multiple times. The system analyzes this capture across nine spectral images — combining distinct light sources with processed diagnostic-style diagram views — to reveal detail not visible under ordinary lighting.

For a closer look at a specific area, the handheld microscopic probe can be used on either the skin or the scalp, switching between white, cross, and UV light to examine pores, follicles, and surface condition up close.

Results are organized into a customer file, so operators can compare a client's current scan against their history and build a 15-second report with a recommended care plan.

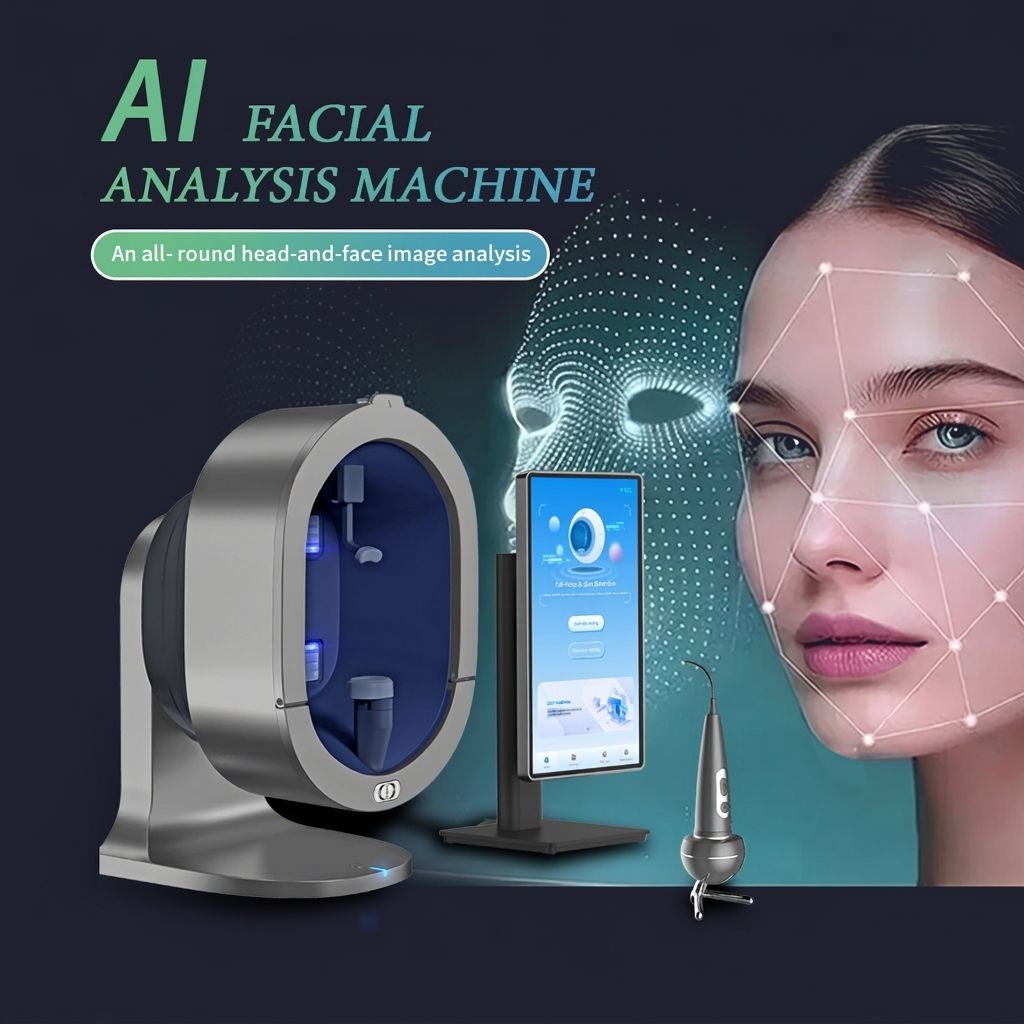

Two Diagnostic Tools in One System

AI 5D Facial Imaging Pod

The main pod combines face recognition technology, auto-focus dual cameras, and nine-spectrum multi-spectral imaging to capture a complete picture of the skin's surface and deeper skinbase layers in a single session.

AI processing analyzes the capture against each major test item and generates a shareable, print- or export-ready analysis report.

Handheld Microscopic Skin & Scalp Probe

The handheld probe provides magnified microscopic imaging under white, cross, and UV light. It is used for detailed skin microflora detection as well as scalp and hair fiber condition.

Grid positioning and zonal selection across five facial/scalp areas allow operators to compare the same spot across visits and track changes over time.

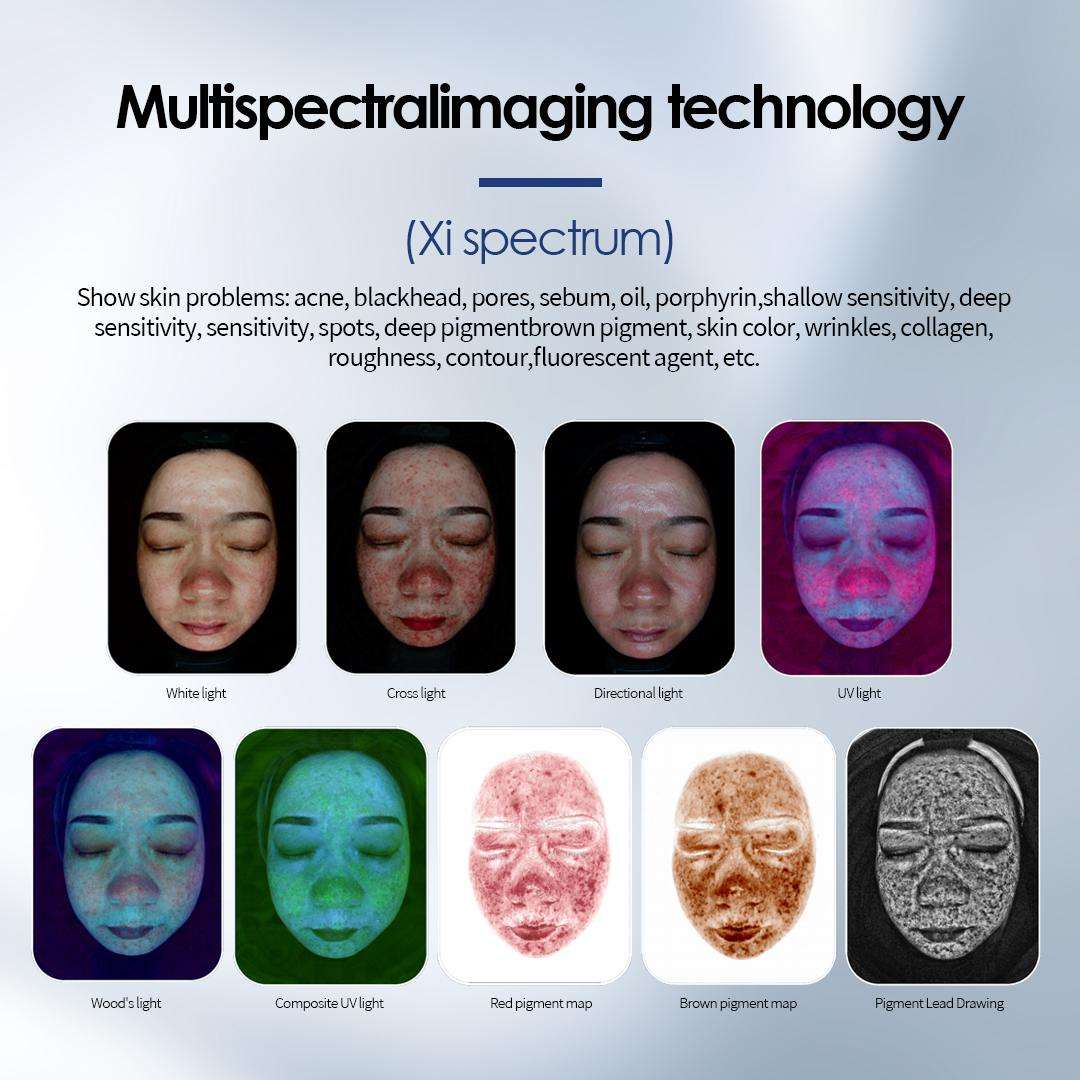

Nine-Spectrum Multi-Spectral Imaging

The system captures the face under nine distinct spectral images, combining six light sources with three processed analysis views, each revealing a different layer of detail:

• White light — shows surface-level spots and visible defects such as acne, pigmented acne, and pores
• Cross light — reveals the shape of facial capillaries, acne, and skin surface uniformity
• Parallel (directional) light — improves clarity of surface texture, enlarging detail to observe flatness, fine lines, wrinkles, and contour
• UV light — highlights pigment-related conditions, pore concerns, and oil-related skin surface changes
• Wood's lamp — penetrates deeper into the dermis to reveal deeper pigment detail with stronger contrast
• Composite UV light — observes the distribution of oil and acne-related bacteria through a fluorescence reaction, and pigment distribution through melanin light refraction
• RBX Red Chart — highlights subcutaneous hemoglobin accumulation as a reference for skin sensitivity and inflammation
• RBX Brown Chart — maps the location, area, shape, and size of subcutaneous UV spots and melanin accumulation
• Pigment Lead Diagram — maps pigment distribution across deep and shallow skin layers, including spots, acne marks, and heme

Two additional processed views support specific departments rather than forming part of the core nine: a Collagen Fiber Diagram (used within the aging assessment to map collagen loss and fiber breakage in the deep skin layer) and a Sensitive Heatmap (used within the sensitivity assessment, a color-coded map — blue: normal, green: mild, yellow: early warning, red: serious — showing hemoglobin distribution and inflammation development).

Comprehensive Skin & Scalp Indicator Testing

The system performs comprehensive testing across 9 major items: skin pattern, hair follicle condition, acne condition, UV spot, moisture content, oil content, red blood condition, pigmentation, and brown spot.

Results are further organized by department so operators can quickly find the testing indicators relevant to a client's concern:

• Acne — 7 test indicators: acne, blackheads, surface oil and grease, deep oil and fat, pores, porphyrin, and acne reflex area
• Sensitivity — 4 test indicators, covering shallow and deep sensitivity with a sensitive heatmap view and classification into dry-and-sensitive, acne-and-sensitive, and spotted-and-sensitive patterns
• Pigment — 4 test indicators, covering pigmentation typing, deep-layer pigment, brown pigment, and complexion/sun-exposure risk
• Aging — 4 test indicators, covering wrinkles, collagen fibers, roughness, and facial contour

Each indicator is scored on a four-grade (I–IV) scale with a quantity count and an affected-area percentage, giving operators a consistent, repeatable way to track changes over time.

The handheld scalp probe adds 5 dedicated scalp indicators: surface grease, sensitive red zone, hair density, hair thickness, and UV deep grease.

Facial Microbiome & Zonal Examination

A dedicated microbiome analysis mode verifies the macroscopic report results from a microscopic perspective, switching between white, cross, and UV light. Grid positioning allows operators to select a specific zone for comparison, case entry, and review.

Operators can choose from 5 selectable testing zones: forehead, nose tip, left cheek, right cheek, and left eye area.

Under magnification, the probe can flag specific micro-level findings such as small inflammation, pigment abnormalities, early-stage chloasma, expanded microvessels, and hair follicle blockage, with nursing program recommendations generated from the results.

Traditional Reflex Zone Reference

Alongside its acne analysis, the system includes an optional traditional Chinese medicine–inspired facial reflex zone map, associating general facial areas with traditional reflex zone concepts — for example, the upper forehead and brow area with heart-, lung-, and liver-related concepts, the under-eye area with breast-related concepts, the mid-face and cheeks with intestine- and stomach-related concepts, the area between the brows with spleen-related concepts, the philtrum with bladder-related concepts, the chin with reproductive-related concepts, and the perioral area with kidney-related concepts, among others.

This reference reflects a traditional framework rather than clinical findings. It is provided for informational and educational context only, is not a medical diagnosis, and should not be used to assess the condition of internal organs or any other health condition. Clients with health concerns should consult a qualified healthcare professional.

Sun Protection Effectiveness Comparison

A dedicated comparison mode captures the face with and without sunscreen applied under multiple light sources, helping operators show clients where sunscreen coverage may be uneven (for example, in the T-zone).

Moisture Mapping, Aging Prediction & Photoaging Simulation

The system segments the face into zones (such as forehead, cheeks, and chin) and reports moisture content as a percentage for each area, supporting hydration-focused nursing advice. Under UV light, the system can also flag the presence and distribution of fluorescent agents on the skin, which may originate from certain skincare or cosmetic products.

Two additional simulation tools give clients a visual, consultation-friendly way to understand long-term skin health: an aging prediction view that projects how current skin characteristics may develop over time, and a photoaging simulation that illustrates the visible effects of UV exposure. Both are presented as educational visualizations to support the consultation, not as a medical forecast.

Weight & Sleep Wellness Tracking

Two additional tracking modes let operators log lifestyle factors alongside a client's skin results. A weight-tracking mode records body weight and BMI over time next to facial indicators such as oil levels, pores, acne, and contour, since body weight changes are commonly understood to relate to skin oil production and facial fullness. A sleep-tracking mode records sleep duration next to the same facial indicators, reflecting the general wellness link between sleep quality and skin appearance (for example, oil levels and under-eye circles).

Each mode displays a side-by-side, grade-based comparison (I–IV) so operators can discuss lifestyle factors as part of a broader skincare consultation, and can recommend relevant care products based on the comparison. This feature is intended as a wellness-tracking and consultation aid; it does not diagnose any medical or metabolic condition.

Advanced Review & Comparison Tools

Beyond the initial capture, the system includes a set of tools for reviewing results in detail during a client consultation: multi-angle viewing to switch between left, center, and right perspectives; label display/hide to toggle marked problem areas on or off the image; local magnification to zoom into specific problem points and switch between light sources on the enlarged view; and 3D simulation slicing, which lets an operator click on any area of a 3D facial scan to reveal a magnified skin-texture heatmap.

A comparative analysis mode shows clients their phased progress over time, with mirror-image, vertical (before/after), and left-right comparison layouts, split between spectral-image comparison and departmental (e.g., acne, sensitivity, pigment, aging) comparison.

Fast, AI-Assisted Capture Workflow

Using AI face recognition and an auto-focus dual camera, the system collects 18 images across the left, middle, and right of the face in a single session — no repositioning, multiple collections, or long shooting required. A new custom HD industrial-grade camera and an updated AI algorithm model support a 15-second detection report with a recommended care plan.

Customer Management & Reporting

Each client's results are stored under a customer profile, allowing operators to quickly and accurately compare past and current test records and track skin and scalp condition over time. Customer records can be searched, edited, and organized by inspection date, and sensitive details such as contact numbers can be partially masked for privacy.

Two report formats are available. An individual report focuses on a single department or concern, with image editing, comparative analysis, and a written summary of findings alongside daily care suggestions. A comprehensive report covers facial proportions, an overview of issues by department, the full set of test data indicators, four departments analyzed separately with key issue images marked, and an overall care plan — all of which can be printed or shared with the client.

For salon and clinic operators, the system also includes case library tools for saving reference images as consultation aids, product management for pushing relevant product or service recommendations based on analysis results, and a data statistics center summarizing customer counts, repeat-visit activity, and symptom/age-group trends to help plan inventory and marketing.

Simple Analysis Workflow

A typical session includes:

1. Position the client in front of the main pod; AI face recognition locates the detection area automatically.
2. Capture the 18-image full-face scan across left, middle, and right angles.
3. Review the 15-second AI-generated report and departmental analysis with the client.
4. Use the handheld probe to examine specific areas of the skin or scalp under white, cross, or UV light.
5. Run the microbiome, sun protection, or moisture/aging prediction comparison modes if relevant to the consultation.
6. Use the review tools (multi-angle view, local magnification, 3D slicing, or before/after comparison) to walk the client through key findings.
7. Save the results to the client's customer file for future comparison.
8. Print or share the report and discuss recommended care and product options.

Why Choose the Wikbeauty AI 5D Skin & Scalp Analyzer?

• Combines a 5D facial imaging pod with a handheld skin and scalp probe
• Nine-spectrum multi-spectral imaging with multiple processed diagram views
• Comprehensive testing across 9 major skin items
• Departmental analysis for acne, sensitivity, pigment, and aging
• Facial microbiome analysis and scalp health assessment
• Moisture mapping, aging prediction, and photoaging simulation
• Weight and sleep wellness tracking alongside facial indicators
• Sun protection effectiveness comparison
• Multi-angle viewing, local magnification, 3D slicing, and before/after comparison tools
• 18-image full-face capture in a single pass
• 15-second AI-generated report with I–IV quantitative grading and care plan
• Customer file management, case library, and data statistics for salon operations
• 15.6" Android touchscreen
• Suitable for salons, skincare clinics, spas, and beauty centers

Technical Specifications

Specification DetailsProduct type AI skin and scalp analysis system (facial imaging pod + handheld microscopic probe)Technology AI, 3D topography analysis technology, intelligent skin analyzer systemImaging Nine-spectrum multi-spectral imaging, face recognition, auto-focus dual cameraFull-face capture 18 images (left, middle, right) in a single sessionDetection report time Approximately 15 secondsCamera HDDisplay 15.6" touchscreen, 1920 x 1080, 16:9Operating system AndroidMemory 4GBStorage 32GBLight source LEDConnectivity WiFiPorts HDMI x1, USB x2Work mode ManualApplication Commercial useTarget area Face (plus scalp via handheld probe)Plug types available US, AU, UK, EU, JP, ZA, ITWarranty 3 yearAfter-sales support Online support, video technical support

Specifications may vary slightly according to the selected configuration. Confirm the final plug type and configuration before ordering.

Suitable for Professional and Personal Settings

The Wikbeauty AI 5D Skin & Scalp Analyzer may be suitable for:

• Beauty salons
• Skincare clinics
• Spas and wellness centers
• Professional beauty centers
• Qualified personal and consultation use

Operators should be trained on the system's software and reporting tools before using it for client consultations.

Package Contents

• 1x Main AI facial imaging pod
• 1x Handheld microscopic skin & scalp probe
• 1x 15.6" touchscreen display
• Power cable
• User manual

Package dimensions and shipping weight were not included in the available product documentation. The exact accessory contents should be confirmed on the final quotation before placing an order.

Warranty and Support

This system is backed by a 3-year warranty, with online support and video technical support available for setup, operation, troubleshooting, and routine maintenance questions.

Important Safety Information

The Wikbeauty AI 5D Skin & Scalp Analyzer is a non-invasive imaging and analysis device. It does not deliver energy-based treatment to the skin. Avoid prolonged direct exposure of the eyes to the UV light source during imaging.

This device is intended to support professional skin and scalp consultations. It is not intended to diagnose, treat, cure, monitor, or prevent any disease. This includes the traditional reflex zone reference feature, which is provided for informational context only. Results should not replace evaluation by a qualified healthcare professional.

Questions & Answers

Is this device safe to use on all clients?

The Wikbeauty AI 5D Skin & Scalp Analyzer is a non-invasive imaging and analysis device — it does not deliver energy-based treatment to the skin. As with any imaging equipment, avoid prolonged direct exposure of the eyes to the UV light source during use.

Does this device diagnose skin diseases or medical conditions?

No. This device is intended to support professional skin and scalp consultations and is not intended to diagnose, treat, cure, monitor, or prevent any disease. This includes the traditional reflex zone reference feature. Results should not replace evaluation by a qualified healthcare professional.

How long does a full facial scan take?

The system captures 18 images across the face in a single session and generates a detection report with a recommended care plan in approximately 15 seconds.

What light sources does the system use?

The main pod uses nine-spectrum multi-spectral imaging, including white, cross, parallel (directional), UV, Wood's lamp, and composite UV light, processed into additional diagnostic-style diagram views. The handheld probe switches between white, cross, and UV light for microscopic examination.

Can this device examine the scalp as well as the skin?

Yes. The handheld probe can be used for scalp health assessment, measuring surface grease, sensitive red zone, hair density, hair thickness, and UV deep grease.

Can I compare a client's results over time?

Yes. Results are stored in a customer file, allowing operators to quickly and accurately compare past and current test records and track a client's skin and scalp condition over time.

What is the warranty on this system?

This system includes a 3-year warranty, with online support and video technical support for setup, operation, troubleshooting, and routine maintenance.

Can the system show clients an aging prediction or sun-damage simulation?

Yes. The system includes an aging prediction view and a photoaging simulation that visually illustrate how current skin characteristics and UV exposure may affect the skin over time. These are educational visualizations intended to support the consultation, not a medical forecast.

Does the system include business or customer management tools?

Yes. Operators can maintain customer profiles with searchable inspection records, organize reference images in a case library, push relevant product or service recommendations, and review a data statistics center summarizing customer activity and symptom trends to support salon or clinic operations.

Can this device track weight or sleep alongside skin results?

Yes. Optional weight-tracking and sleep-tracking modes let operators log a client's body weight/BMI or sleep duration next to their facial indicators over time, as a wellness-tracking and consultation aid. These modes do not diagnose any medical or metabolic condition.

Order the Wikbeauty AI 5D Skin & Scalp Analyzer

Add AI-powered 5D skin analysis, nine-spectrum multi-spectral imaging, and handheld skin and scalp microscopy to your consultation services with one integrated system.

The AI 5D Skin & Scalp Analyzer combines facial imaging, microscopic scalp analysis, AI reporting, client-history comparison, and business-management tools in one professional platform.

Key features include:

• AI-powered 5D facial skin analysis
• Nine-spectrum multi-spectral imaging
• Testing across 9 major skin indicators
• 18-image full-face capture in one session
• Approximately 15-second AI report generation
• AI face recognition
• Auto-focus dual camera
• Handheld microscopic skin and scalp probe
• Acne analysis
• Sensitivity analysis
• Pigment analysis
• Aging analysis
• Facial microbiome examination
• Five dedicated scalp indicators
• Moisture mapping
• Aging prediction
• Photoaging simulation
• Sunscreen effectiveness comparison
• Multi-angle viewing
• Local magnification
• 3D simulation slicing
• Before-and-after comparison
• Customer file management
• Case-library tools
• Product and service recommendation tools
• Business data statistics
• 15.6-inch Android touchscreen
• WiFi connectivity

• Product Type: AI Skin & Scalp Analysis System
• Configuration: Facial Imaging Pod + Handheld Microscopic Probe
• Technology: AI + 3D Topography Analysis + Intelligent Skin Analyzer
• Imaging: Nine-Spectrum Multi-Spectral Imaging
• Facial Capture: 18 Images in One Session
• Report Generation Time: Approximately 15 Seconds
• Camera: HD Auto-Focus Dual Camera
• Display: 15.6-Inch Touchscreen
• Screen Resolution: 1920 × 1080
• Aspect Ratio: 16:9
• Operating System: Android
• Memory: 4GB
• Storage: 32GB
• Light Source: LED
• Connectivity: WiFi
• Ports: 1 × HDMI, 2 × USB
• Work Mode: Manual
• Application: Commercial Use
• Target Area: Face + Scalp via Handheld Probe
• Plug Options: US, AU, UK, EU, JP, ZA, IT
• Warranty: 3 Years
• After-Sales Support: Online Support + Video Technical Support    Pasted text

The standard package includes:

• 1 × Main AI Facial Imaging Pod
• 1 × Handheld Microscopic Skin & Scalp Probe
• 1 × 15.6-Inch Touchscreen Display
• 1 × Power Cable
• 1 × User Manual

Need multiple Wikbeauty AI 5D Skin & Scalp Analyzers for your beauty salon, skincare clinic, spa, wellness center, professional beauty center, franchise, training center, or distribution business?

Wikbeauty offers volume purchasing options for larger orders.

You can visit our dedicated Volume Discount page or contact us directly for current bulk-order pricing and purchasing support.
