HIFU Cartridge Depths: 1.5mm, 3.0mm, 4.5mm Guide

HIFU Cartridge Depths Explained 1 5mm 3 0mm 4 5mm and Body Heads

HIFU cartridge depth determines where focused ultrasound energy is delivered beneath the skin. In facial treatments, the common depths are 1.5mm, 3.0mm and 4.5mm; body cartridges may reach deeper layers depending on the device and treatment area. This guide explains what each depth is generally used for, how practitioners combine cartridges, and why correct depth selection matters for both results and safety.

What do HIFU cartridge depths mean?

HIFU cartridge depths describe the focal point of the ultrasound energy, not how far the handpiece touches the skin. A 1.5mm cartridge focuses energy more superficially, a 3.0mm cartridge targets deeper dermal tissue, and a 4.5mm cartridge is commonly used for deeper support structures such as the SMAS or superficial fascia in suitable areas. Published reviews of microfocused ultrasound describe transducers with focal depths of 1.5mm, 3.0mm and 4.5mm, used to create controlled thermal coagulation points below the skin surface while sparing the outer skin when applied correctly.

That is why the phrase HIFU Cartridge Depths Explained: 1.5mm, 3.0mm, 4.5mm and Body Heads is really about matching energy to anatomy. The same face can include thin, delicate areas and thicker, more mobile areas, so one cartridge is rarely “best” for everything. A professional assessment should consider skin thickness, laxity, comfort, treatment goals, and areas that must be avoided.

The 1.5mm cartridge targets superficial skin quality

The 1.5mm cartridge is the shallowest of the common facial heads. It is generally chosen for superficial dermal work, especially where the goal is to support skin texture, fine crepiness, or early laxity rather than create a deeper lifting effect. Because it sits closer to the surface, it is often discussed for thinner skin zones, but it still requires careful technique and correct energy settings.

In practice, 1.5mm is not a “lightweight” option simply because it is shallow. It can be useful when the skin itself is the main concern, but it may be inappropriate over areas where tissue is extremely thin, irritated, recently treated, or medically unsuitable. Good providers do not use it automatically across the whole face; they map where superficial tightening is needed and where the cartridge should be reduced, skipped, or replaced with another approach.

Typical uses may include:

• Fine lines and mild crepiness in suitable areas
• Superficial firmness support
• Layering with deeper cartridges for a more complete treatment plan
• Finishing passes after deeper work, depending on the protocol

The 3.0mm cartridge supports dermal tightening

The 3.0mm cartridge is often considered the middle-depth workhorse for facial HIFU. It focuses below the superficial layer and is commonly used for dermal tightening, mild laxity, and areas where collagen remodeling is the main goal. If 1.5mm is about the upper skin layer and 4.5mm is about deeper structural support, 3.0mm often bridges the two.

This depth is frequently used on cheeks, jawline zones, and other appropriate areas where the dermis has enough thickness to receive energy safely. It may be used alone for subtle tightening or combined with 1.5mm and 4.5mm in a layered protocol. The practical benefit is balance: it can address firmness without relying entirely on the deepest cartridge.

A common mistake is assuming that stronger or deeper always means better. For many clients, especially those with mild to moderate laxity, the 3.0mm cartridge may do much of the useful work because it targets the layer most associated with skin firmness. The best plan is not the most aggressive plan; it is the one that matches tissue depth and aesthetic goals.

The 4.5mm cartridge reaches deeper support layers

The 4.5mm cartridge is generally used where deeper lifting support is appropriate. In facial aesthetics, it is commonly associated with targeting the SMAS region or deeper fibromuscular support layer in suitable treatment zones. This is one reason 4.5mm is often selected for lower-face laxity, jawline definition, and lifting-style protocols rather than surface texture alone.

Because this depth reaches farther below the surface, precision becomes especially important. It should not be used indiscriminately over bony, thin, nerve-sensitive, or unsuitable areas. Consensus and safety literature on microfocused ultrasound with visualization emphasizes adjusting treatment depth to the individual’s anatomy and avoiding non-target tissue.

For the client, this means 4.5mm may feel deeper and more intense than shallower passes. For the practitioner, it means assessment, marking, coupling, and controlled delivery matter. A deeper cartridge should be chosen because the tissue target is deeper, not because the client wants a more dramatic result overnight.

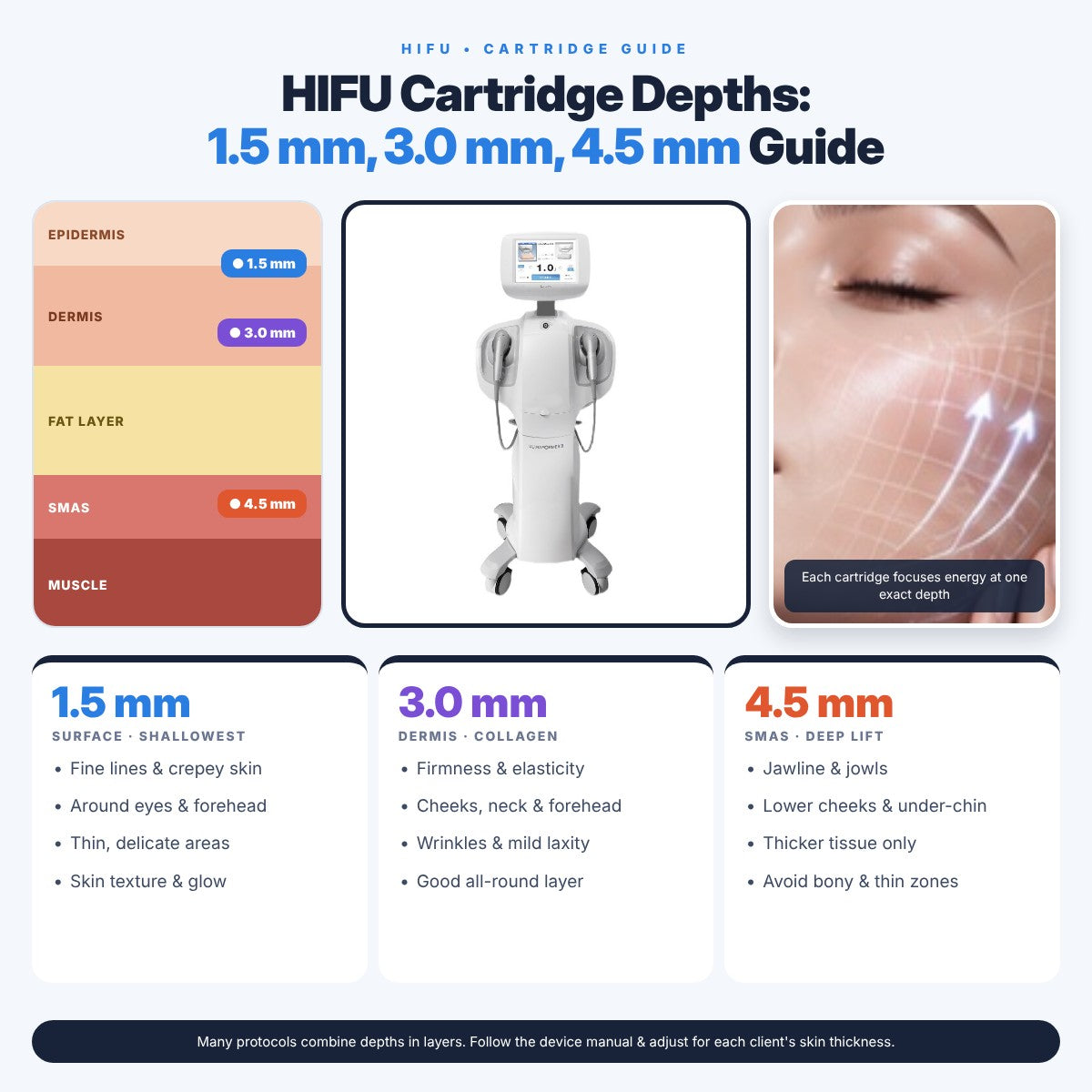

Facial cartridge comparison at a glance

This comparison is a guide, not a treatment prescription. Cartridge availability, focal depth, pulse pattern, energy level, and line count vary by HIFU platform. Always follow the device instructions and local scope-of-practice rules.

How are body HIFU heads different?

Body HIFU heads are designed for larger areas and often deeper tissue targets than facial cartridges. Depending on the system, body cartridges may include depths such as 6mm, 7mm, 9mm, 10mm, 13mm, or deeper; the exact options depend on the device. They may be used for areas such as abdomen, arms, thighs, or other appropriate zones when skin laxity or contour concerns are suitable for ultrasound-based treatment.

Body treatments require a different mindset from facial treatments. The tissue is thicker, the treatment grid is larger, and the goal may be gradual tightening, contour refinement, or support of lax skin rather than fine-line improvement. Expert consensus for body applications of microfocused ultrasound notes that transducer choice should be guided by the target layer and individual tissue profile, with dual- or triple-depth approaches used in selected cases.

How do practitioners choose the right cartridge?

A practitioner chooses the cartridge by matching the treatment goal to the tissue layer. If the concern is surface crepiness, a shallower depth may be considered. If the goal is dermal firmness, 3.0mm may be central to the plan. If deeper laxity is present in an appropriate area, 4.5mm or a body depth may be selected.

A sensible cartridge plan usually includes:

1. Consultation and contraindication screening to check medical history, skin condition, implants, pregnancy status where relevant, recent procedures, and treatment suitability.
2. Area-by-area assessment because the forehead, cheeks, jawline, neck, abdomen, and arms do not have the same tissue depth.
3. Depth selection based on anatomy, not guesswork or a fixed menu.
4. Energy and line planning adjusted for comfort, device guidance, and desired outcome.
5. Aftercare advice so the client understands expected tenderness, temporary redness, and when to seek help.

Safety and realistic expectations

HIFU is non-surgical, but it is still an energy-based treatment. Temporary redness, tenderness, swelling, tingling, or bruising can occur, and incorrect depth selection may increase the risk of unwanted effects. This is why trained operation, correct cartridge choice, full skin contact, and avoidance of unsafe zones matter more than the number of passes.

Results are usually gradual because the visible effect depends on tissue contraction and remodeling rather than instant removal of loose skin. HIFU may suit mild to moderate laxity, but it is not a substitute for surgery when there is significant excess skin. It also does not replace volume restoration, resurfacing, or medical dermatology care when those are the real priorities.

Key takeaways

• 1.5mm is generally used for superficial skin quality and fine crepiness.
• 3.0mm is commonly used for dermal tightening and firmness.
• 4.5mm is used for deeper lift-focused support in suitable areas.
• Body heads vary by device and may reach deeper tissue than facial cartridges.
• The best HIFU outcome depends on anatomy-based planning, not simply choosing the deepest cartridge.

A well-planned HIFU treatment uses cartridge depth as a precision tool. When the right depth is matched to the right tissue layer, the treatment can support natural-looking tightening while keeping safety at the center of the process.
