Professional Radial Pressure-Wave and Ultrasound System

Two Physiotherapy Modalities in One Compact Platform

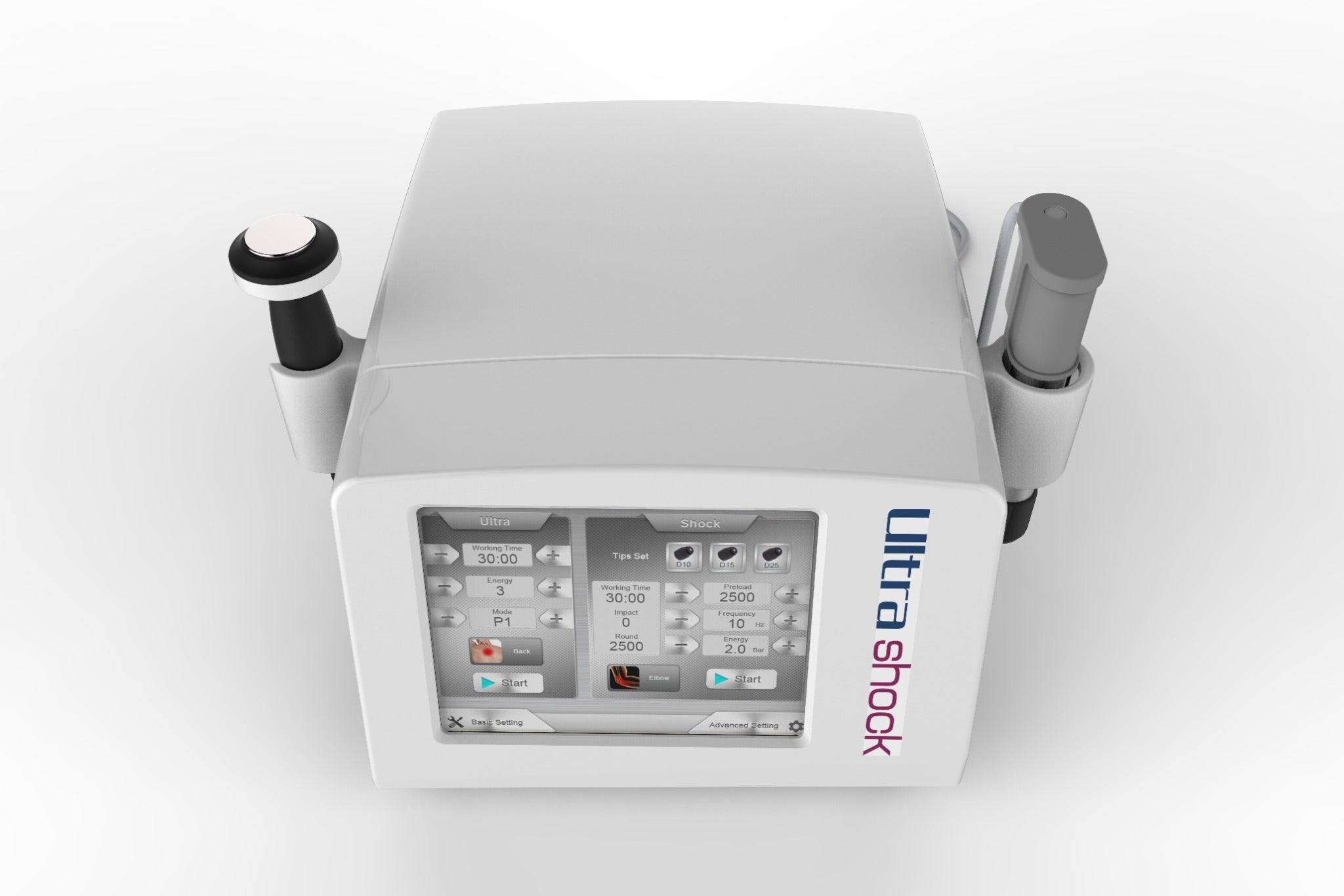

The Wikbeauty Ultrashock combines pneumatic radial pressure-wave technology with 1 MHz therapeutic ultrasound in one professional physiotherapy system.

Twelve interchangeable pressure-wave applicator heads, touchscreen controls and separate treatment modes provide qualified practitioners with flexibility for professionally assessed musculoskeletal and rehabilitation applications.

The compact system integrates two established modalities without requiring two separate control units.

Two modalities | 12 applicator heads | Touchscreen control | Three-year warranty

Two Professional Treatment Modalities

Pneumatic Radial Pressure-Wave Therapy

The pneumatic handpiece uses compressed air to accelerate a projectile inside the handpiece. The projectile strikes the selected applicator, producing acoustic pressure waves that spread radially into the treatment area.

Key features include:

•
  Adjustable pressure up to 6 bar

•
  Twelve interchangeable applicator heads

•
  Applicator sizes from D6 to D25

•
  Flat, targeted-contact and radial applicator designs

•
  Touchscreen body-area menus

•
  Professional handpiece construction


Therapeutic Ultrasound

The ultrasound handpiece operates at 1 MHz and delivers mechanical vibration through an appropriate coupling gel.

Therapeutic ultrasound can be used in continuous or pulsed formats where supported by the machine configuration and professional protocol.

Potential professional applications may include:

•
  Selected soft-tissue rehabilitation

•
  Tissue-heating protocols

•
  Preparation for stretching or mobility work

•
  Other professionally assessed musculoskeletal applications


Treatment outcomes depend on intensity, duration, duty cycle, treatment area and individual response.

Radial Pressure Waves Versus Focused Shockwaves

Ultrashock uses pneumatic ballistic radial pressure-wave technology.

Radial pressure wavesFocused shockwavesGenerated by a projectile striking an applicatorGenerated through electrohydraulic, electromagnetic or piezoelectric mechanismsHighest pressure is generally near the applicator surfaceEnergy is concentrated at a defined focal pointPressure spreads radially from the applicatorEnergy is focused at a selected depthCommonly described using bar and HzCommonly described using energy-flux densityOften used for professionally assessed soft-tissue applicationsUsed for selected focused clinical applications

An applicator described as a “focus head” provides more localized contact, but it does not turn the pneumatic radial system into a true focused shockwave generator.

Twelve Interchangeable Applicator Heads

The system includes twelve pressure-wave applicator heads ranging from D6 to D25.

Flat Applicators

Designed to distribute pressure over a relatively broad contact area.

Common professional uses may include:

•
  Larger muscle groups

•
  Broader soft-tissue areas

•
  Surface-oriented protocols


Targeted-Contact Applicators

Designed to provide more localized contact over an appropriately selected treatment area.

These heads do not create a true focused shockwave field.

Radial Applicators

Designed to distribute pressure across wider anatomical areas according to the supplied operating protocol.

D6–D25 Size Range

Smaller applicators may suit localized areas, while larger applicators provide broader contact.

Applicator selection must be based on anatomy, diagnosis, patient tolerance and professional training.

Potential Professional Applications

Subject to the device’s authorized indications, local regulations and clinical assessment, the Ultrashock may be incorporated into rehabilitation programs concerning:

•
  Plantar-fascia pain

•
  Achilles-tendon concerns

•
  Patellar-tendon concerns

•
  Lateral or medial elbow tendinopathy

•
  Selected shoulder-tendon conditions

•
  Myofascial trigger points

•
  Muscle tension

•
  Selected sports-related soft-tissue conditions

•
  Professionally assessed rehabilitation programs


Evidence and protocols vary between conditions. The system should not be represented as treating virtually every pain, joint, tendon or sports injury.

Claims That Should Not Be Guaranteed

The Ultrashock should not be promoted as guaranteeing:

•
  Calcium-deposit removal

•
  New blood-vessel formation

•
  Tissue regeneration

•
  Accelerated healing

•
  Elimination of inflammation

•
  Permanent pain relief

•
  Faster return to sport

•
  Prevention of future injuries

•
  Superior outcomes from combining both modalities

•
  Suitability for every musculoskeletal condition


Clinical outcomes depend on diagnosis, treatment parameters, patient condition and the broader rehabilitation plan.

Flexible Dual-Modality Workflow

Radial Pressure-Wave Treatment

The practitioner selects an applicator and adjusts the available pressure, frequency and impact settings according to the treatment plan.

Therapeutic-Ultrasound Treatment

The 1 MHz ultrasound handpiece is used with an appropriate coupling gel and professionally selected treatment parameters.

Sequential Treatment Planning

A qualified practitioner may use both modalities within the same rehabilitation plan when clinically appropriate.

The modalities should not automatically be combined on the same area or represented as producing superior results without supporting evidence.

Independent Use

Either modality can be used independently according to the patient assessment and treatment objective.

How a Professional Session Works

1. Clinical Assessment

The practitioner reviews the patient’s diagnosis, medical history, symptoms, treatment area and contraindications.

2. Modality Selection

Radial pressure-wave therapy, therapeutic ultrasound or a professionally justified sequence is selected.

3. Applicator Preparation

The appropriate pressure-wave head or ultrasound handpiece is inspected and installed.

4. Treatment-Area Preparation

The patient is positioned correctly, and the recommended coupling gel is applied.

5. Parameter Selection

Pressure, frequency, impact count, ultrasound intensity and treatment time are selected according to the professional protocol.

6. Controlled Treatment

The modality is applied while the practitioner monitors comfort, tissue response and device operation.

7. Documentation and Follow-Up

Treatment settings and patient response are documented. Further sessions are scheduled only when clinically appropriate.

Temporary discomfort, redness, bruising, swelling or tenderness may occur after pressure-wave treatment. Therapeutic ultrasound risks depend on intensity, duration and treatment location.

Technical Specifications

SpecificationDetailsProduct nameUltrashockProduct typeProfessional dual-modality physiotherapy systemIncluded modalitiesPneumatic radial pressure waves and therapeutic ultrasoundPressure-wave mechanismPneumatic ballisticMaximum pressureUp to 6 barApplicator headsTwelve interchangeable headsApplicator sizesD6–D25Applicator stylesFlat, targeted-contact and radialUltrasound frequency1 MHzControl interfaceTouchscreen with body-area modesRated power250 WVoltage options110 V or 220 VPackage dimensions58 × 46 × 42 cmNet weightApproximately 28 kgCertificationsCE certified with applicable ISO documentationWarrantyThree-year limited parts warrantySupportRemote after-sales support

The package dimensions should not be described as the machine’s installed footprint unless the product dimensions are confirmed separately.

What Is Included?

Main Equipment

•
  One Ultrashock control system

•
  One pneumatic radial pressure-wave handpiece

•
  One 1 MHz therapeutic-ultrasound handpiece

•
  Twelve interchangeable pressure-wave applicators

•
  Power cable suitable for the selected market

•
  Required connection accessories

•
  Starter coupling gel, where applicable


Documentation and Certification

•
  English user manual

•
  CE certificate

•
  Applicable ISO documentation

•
  Installation and setup guidance

•
  Radial pressure-wave operating guidance

•
  Therapeutic-ultrasound operating guidance

•
  Cleaning and maintenance instructions

•
  Contraindication-screening guidance

•
  Basic troubleshooting assistance


Professional Training

•
  Touchscreen navigation

•
  Pressure-wave handpiece setup

•
  Applicator selection

•
  Basic parameter adjustment

•
  Therapeutic-ultrasound operation

•
  Coupling-gel use

•
  Treatment monitoring

•
  Equipment maintenance

•
  Training certificate after completion


Final package contents should be confirmed on the order quotation.

CE-Certified Professional System

The Wikbeauty Ultrashock comes with:

•
  CE Certificate

•
  Applicable ISO Documentation


These documents are included with the machine and support its professional positioning and international distribution.

The device must be marketed and used only for the indications covered by its applicable certification and local regulatory status.

Professional Training and Support

Wikbeauty provides remote equipment training covering:

•
  System installation

•
  Touchscreen operation

•
  Pressure-wave handpiece setup

•
  Applicator-head installation

•
  Basic pressure and impact adjustment

•
  Therapeutic-ultrasound operation

•
  Patient screening

•
  Cleaning and maintenance

•
  Basic troubleshooting


A training certificate is provided after completion.

Equipment training does not replace professional physiotherapy education, medical diagnosis or any license required in the operator’s jurisdiction.

Three-Year Parts Warranty

The Ultrashock is supported by a three-year limited parts warranty and remote after-sales assistance.

Warranty Coverage

Subject to the official warranty conditions, eligible manufacturing defects may be covered for:

•
  Main control system

•
  Internal electronic components

•
  Touchscreen

•
  Original pneumatic handpiece

•
  Original ultrasound handpiece

•
  Internal compressor components

•
  Original connectors

•
  Other eligible machine parts


Applicators, projectiles, seals, filters and other wear components may have separate warranty terms.

Technical-Support Process

If a technical issue occurs, Wikbeauty will assist with:

1.
   Remote assessment

2.
   Guided diagnostic testing

3.
   Identification of the affected component

4.
   Confirmation of warranty eligibility

5.
   Replacement-part assistance where applicable

6.
   Remote installation guidance


Warranty Exclusions

The warranty does not normally cover:

•
  Accidental or cosmetic damage

•
  Incorrect operation or misuse

•
  Unauthorized repairs or modifications

•
  Incorrect voltage or electrical connection

•
  Improper cleaning or storage

•
  Damage caused by dropping a handpiece

•
  Normal applicator or projectile wear

•
  Filter and seal replacement

•
  Liquid entering a handpiece

•
  Unauthorized transportation damage

•
  Failure to follow the operating manual


All coverage remains subject to Wikbeauty’s official warranty policy.

Maintenance and Operating Care

Use the Correct Coupling Medium

Apply the recommended gel during radial pressure-wave and ultrasound treatments.

Prevent gel or other liquids from entering the handpieces, connectors or ventilation openings.

Inspect Wear Components

Regularly inspect:

•
  Applicator heads

•
  Projectile and guide components

•
  Seals

•
  Filters

•
  Handpiece connections

•
  Ultrasound treatment surface


Clean After Use

Clean and disinfect external treatment surfaces according to the supplied instructions. Do not immerse electrical handpieces.

Store Correctly

Keep the system in a dry, climate-controlled environment and protect all handpieces from impact.

Contraindications and Safety Precautions

The Ultrashock is professional therapeutic equipment and should only be operated by appropriately trained personnel.

Treatment may be contraindicated or require additional assessment when the treatment field includes:

•
  Active infection

•
  Open wounds

•
  Malignant tumor

•
  A fetus

•
  Significant bleeding or coagulation disorder

•
  Thrombosis

•
  Pacemaker or implanted electronic device

•
  Severely impaired sensation

•
  Lung tissue or other air-containing organs

•
  Brain or spinal structures

•
  Active growth plates

•
  Other contraindications listed in the user manual


High energy should not be applied directly over vulnerable organs, large blood vessels, major nerves or other prohibited areas.

This is not an exhaustive list. Appropriate examination, diagnosis and medical clearance are required when treatment suitability is uncertain.

Intended Professional Users

The Ultrashock is suitable for:

•
  Physiotherapy clinics

•
  Rehabilitation centers

•
  Sports-medicine practices

•
  Orthopedic rehabilitation facilities

•
  Licensed multidisciplinary clinics

•
  Qualified physical therapists

•
  Appropriately trained healthcare professionals


The system is not intended for casual, consumer or unsupervised home use.

Why Choose Ultrashock?

Two Modalities in One Platform

Combine radial pressure-wave treatment and 1 MHz therapeutic ultrasound without purchasing two separate control units.

Twelve Applicator Heads

Choose from D6–D25 applicator sizes for different professionally assessed areas.

Adjustable Pressure

The pneumatic handpiece provides output up to 6 bar.

Touchscreen Operation

Body-area menus help streamline equipment setup while leaving final parameter selection to the practitioner.

International Voltage Options

Select either a 110 V or 220 V configuration for the intended market.

Professional Certifications

The machine comes with a CE certificate and applicable ISO documentation.

Long-Term Equipment Support

Professional training and a three-year limited parts warranty are included.

Frequently Asked Questions

Is Ultrashock a focused shockwave machine?

No. Ultrashock uses pneumatic ballistic radial pressure-wave technology.

Does the targeted-contact applicator create focused shockwaves?

No. It provides more localized surface contact but does not create the focal field of a true focused shockwave generator.

What is the second treatment modality?

The system includes a 1 MHz therapeutic-ultrasound handpiece.

Can both modalities be used during one session?

A qualified practitioner may use both modalities when clinically appropriate. They should not automatically be combined for every patient or condition.

Can Ultrashock break down calcifications?

Some shockwave technologies are used in selected calcific conditions, but results depend on the technology, diagnosis and protocol. Guaranteed calcification removal should not be claimed for this radial device.

Does the machine treat every sports injury?

No. Proper diagnosis and patient selection are required. Different injuries require different rehabilitation approaches.

Is treatment painless?

Pressure-wave treatment may produce discomfort, tenderness or temporary bruising. Settings should be adjusted according to clinical needs and patient tolerance.

Is training included?

Yes. Remote equipment training and a training certificate are included. This does not replace professional physiotherapy qualifications.

Is Ultrashock CE approved?

The supplied information confirms CE certification and applicable ISO documentation.

What does the warranty cover?

The three-year limited warranty covers eligible manufacturing defects affecting approved machine parts. Wear components, accidental damage, misuse and unauthorized modifications are excluded.

What certifications are included?

The machine comes with a CE certificate and applicable ISO documentation.

Add Dual-Modality Physiotherapy to Your Practice

The Wikbeauty Ultrashock combines:

1.
   Pneumatic radial pressure-wave technology

2.
   One-megahertz therapeutic ultrasound

3.
   Twelve interchangeable applicator heads

4.
   Touchscreen body-area controls

5.
   A compact professional platform


Available for qualified professional use and subject to applicable local regulations.

Request Professional Pricing and Product Information

Ultrashock combines two complementary physiotherapy modalities in one professional system.

Key features include:

•
  Pneumatic radial pressure-wave technology

•
  1 MHz therapeutic ultrasound

•
  Adjustable pressure up to 6 bar

•
  12 interchangeable pressure-wave applicator heads

•
  Applicator sizes from D6 to D25

•
  Flat, targeted-contact, and radial applicator designs

•
  Touchscreen control with body-area modes

•
  250 W rated power

•
  110 V or 220 V options

•
  Approximately 28 kg net weight

•
  CE certified

•
  Applicable ISO documentation

•
  Three-year limited parts warranty

•
  Remote after-sales support

Wikbeauty provides remote equipment training covering:

•
  System installation

•
  Touchscreen operation

•
  Pressure-wave handpiece setup

•
  Applicator-head installation

•
  Basic pressure and impact adjustment

•
  Therapeutic-ultrasound operation

•
  Patient screening

•
  Cleaning and maintenance

•
  Basic troubleshooting

Product Name: Ultrashock

Product Type: Professional dual-modality physiotherapy system

Included Modalities: Pneumatic radial pressure waves and therapeutic ultrasound

Pressure-Wave Mechanism: Pneumatic ballistic

Maximum Pressure: Up to 6 bar

Applicator Heads: 12 interchangeable heads

Applicator Sizes: D6–D25

Applicator Styles: Flat, targeted-contact, and radial

Ultrasound Frequency: 1 MHz

Control Interface: Touchscreen with body-area modes

Rated Power: 250 W

Voltage Options: 110 V or 220 V

Package Dimensions: 58 × 46 × 42 cm

Net Weight: Approximately 28 kg

Certifications: CE certified with applicable ISO documentation

Warranty: Three-year limited parts warranty

Support: Remote after-sales support

The provided product information confirms:

•
  Voltage Options: 110 V or 220 V

•
  Net Weight: Approximately 28 kg

•
  Package Dimensions: 58 × 46 × 42 cm

•
  Power Cable: Suitable for the selected market

•
  Required connection accessories: Included

•
  Starter coupling gel: Included where applicable


The supplied information does not specify an exact delivery time, shipping carrier, shipping fee, or customs terms, so I have not added them

Need multiple units for your physiotherapy clinic, rehabilitation center, sports-medicine practice, or distribution business?

Wikbeauty offers volume purchasing options for larger orders.

You can visit our dedicated Volume Discount page or contact us directly for current bulk-order pricing and purchasing support.
