The Professional Standard in Dual-Modality Physiotherapy — Pneumatic Shockwave and Therapeutic Ultrasound in One System

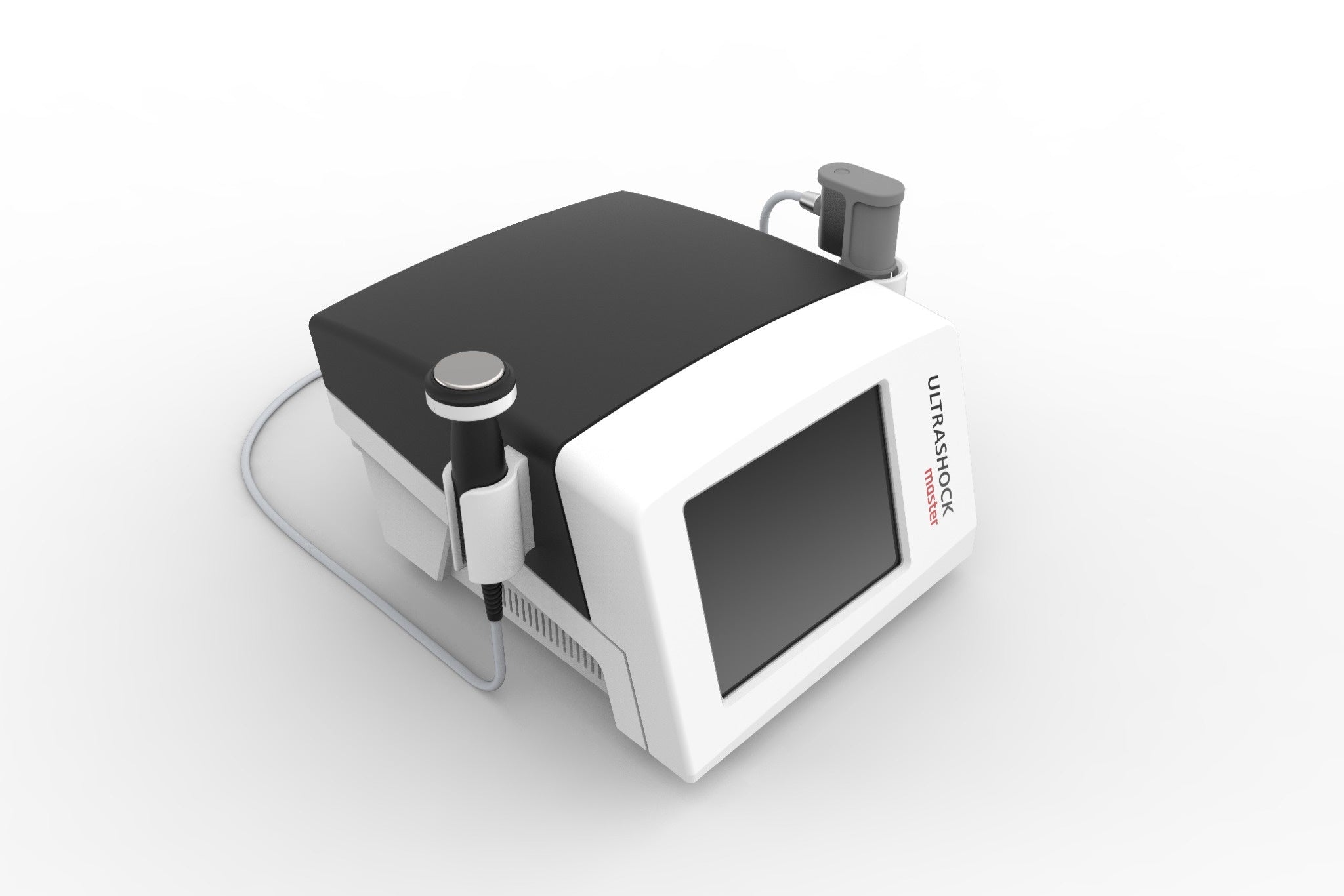

The Ultrashock Master is a professional-grade 2-in-1 physiotherapy system that combines Pneumatic Ballistic Shockwave Therapy and Therapeutic Ultrasound Therapy in a single premium aluminium flight case. Designed for physiotherapy clinics, rehabilitation centres, sports medicine practices, and aesthetic facilities that demand the highest level of clinical versatility, the Ultrashock Master delivers two of the most clinically validated physiotherapy modalities from a single, integrated platform.
With 12 interchangeable shockwave treatment heads, a 10.4-inch touchscreen interface, 10 body-part selection menus for each therapy, and fully independent parameter control for both modalities, the Ultrashock Master enables practitioners to treat the full spectrum of musculoskeletal, soft tissue, and chronic pain conditions — all without surgery, anaesthesia, or patient downtime.

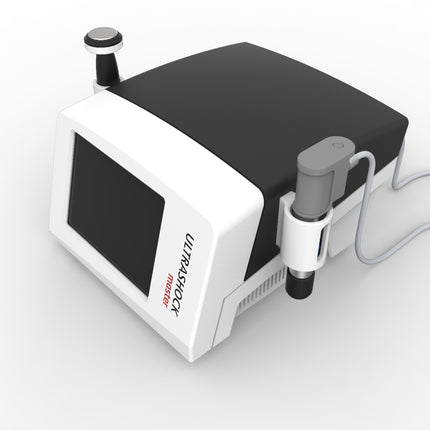

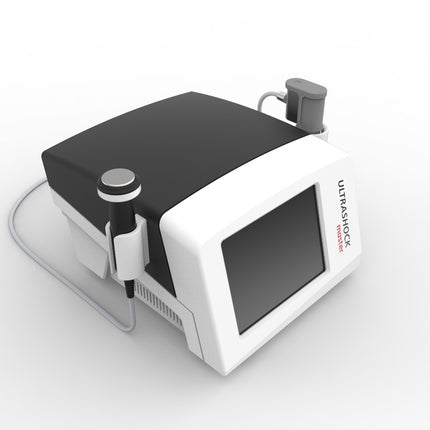

Machine Components

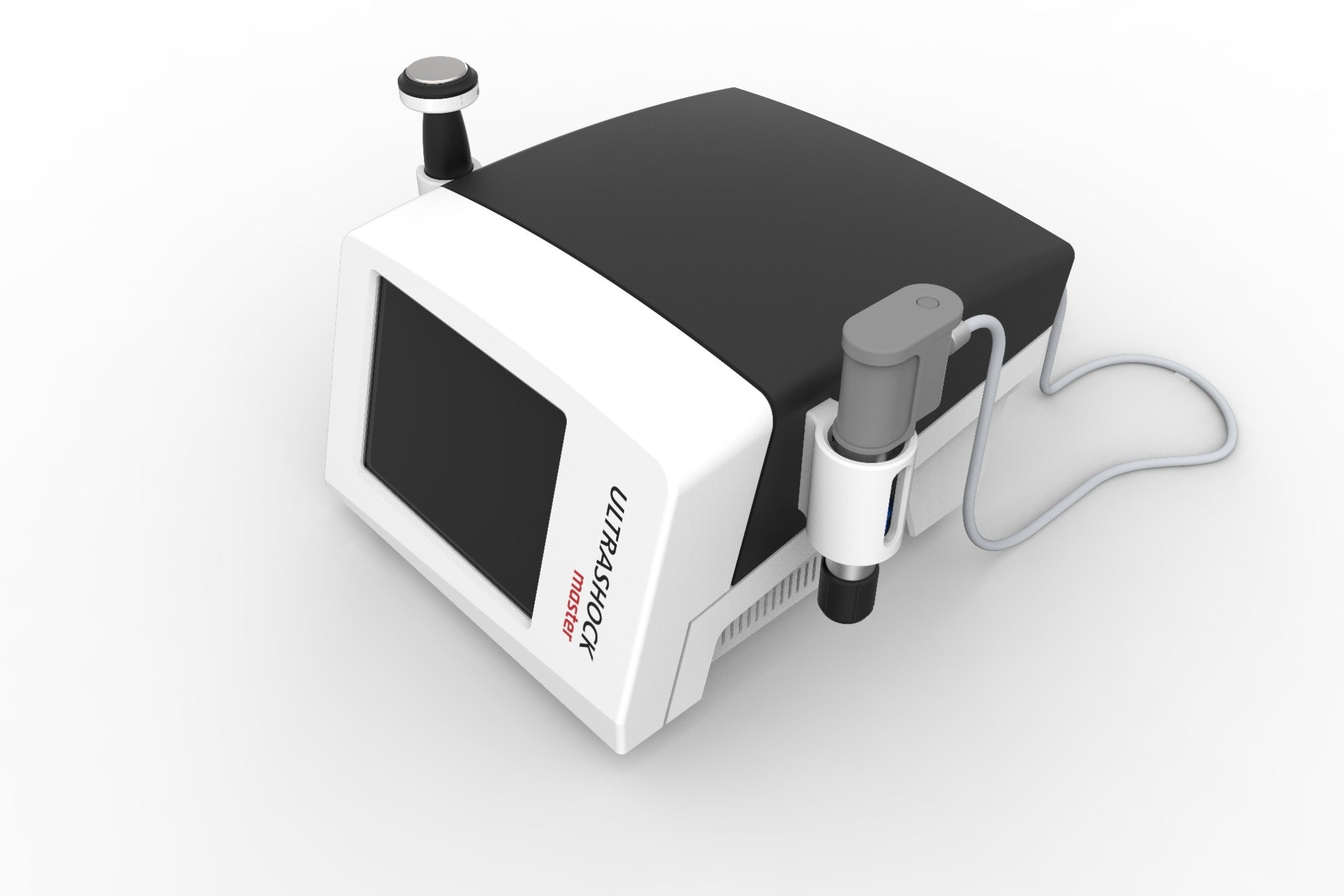

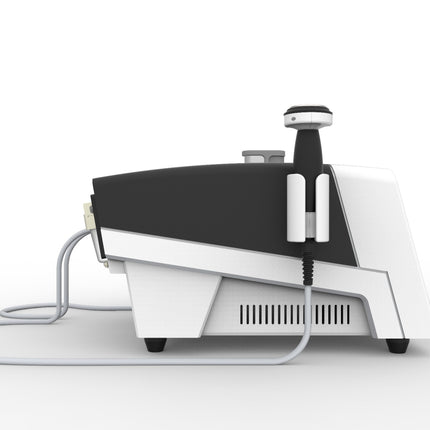

- Pneumatic Shockwave Handle with 12 interchangeable treatment heads

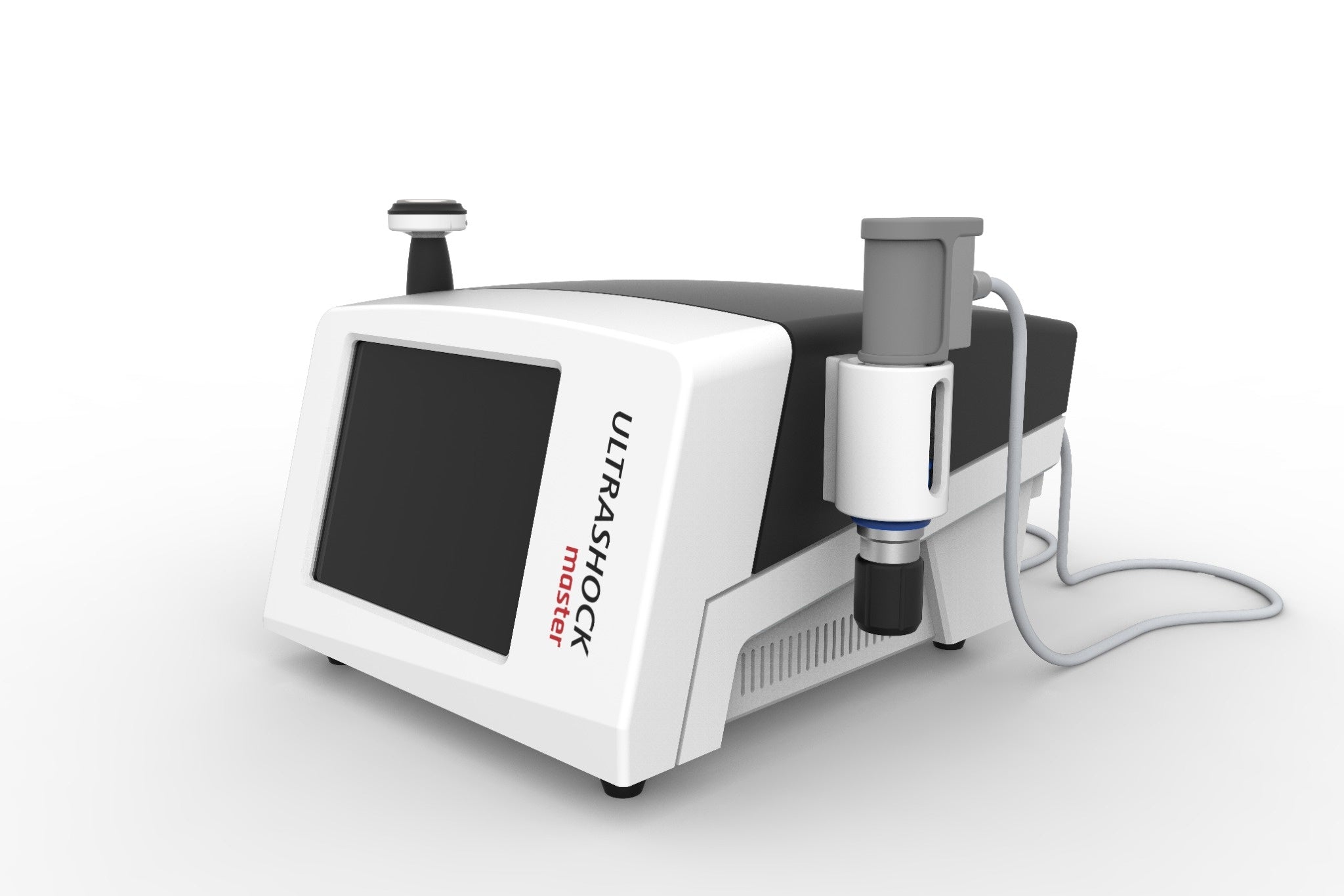

- Therapeutic Ultrasound Handle (1 MHz)

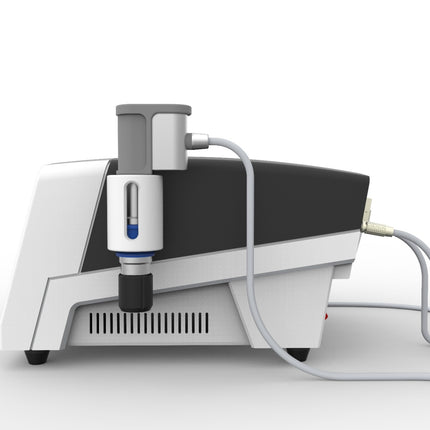

- 10.4-inch colour touch screen with independent interfaces for each therapy
- Power switch, socket, and filter cup
- Dedicated shockwave and ultrasound connectors
- Premium aluminium flight case for transport and storage
Technical Specifications
-
Model: Ultrashock Master
-
Shockwave Energy: 1–6 Bar
-
Shockwave Frequency: 1–21 Hz
-
Ultrasound Energy: 0.2–3 W/cm²
-
Ultrasound Frequency: 1 MHz
-
Shockwave Treatment Heads: 12 tips
-
Bullet Life: 5 million impacts
-
Display: 10.4-inch touch screen
-
Machine Power: 250W
-
Packing Dimension: 58 x 46 x 42 cm (Aluminium Box + Carton)
-
Gross Weight: 30 kg
-
Net Weight: 28 kg

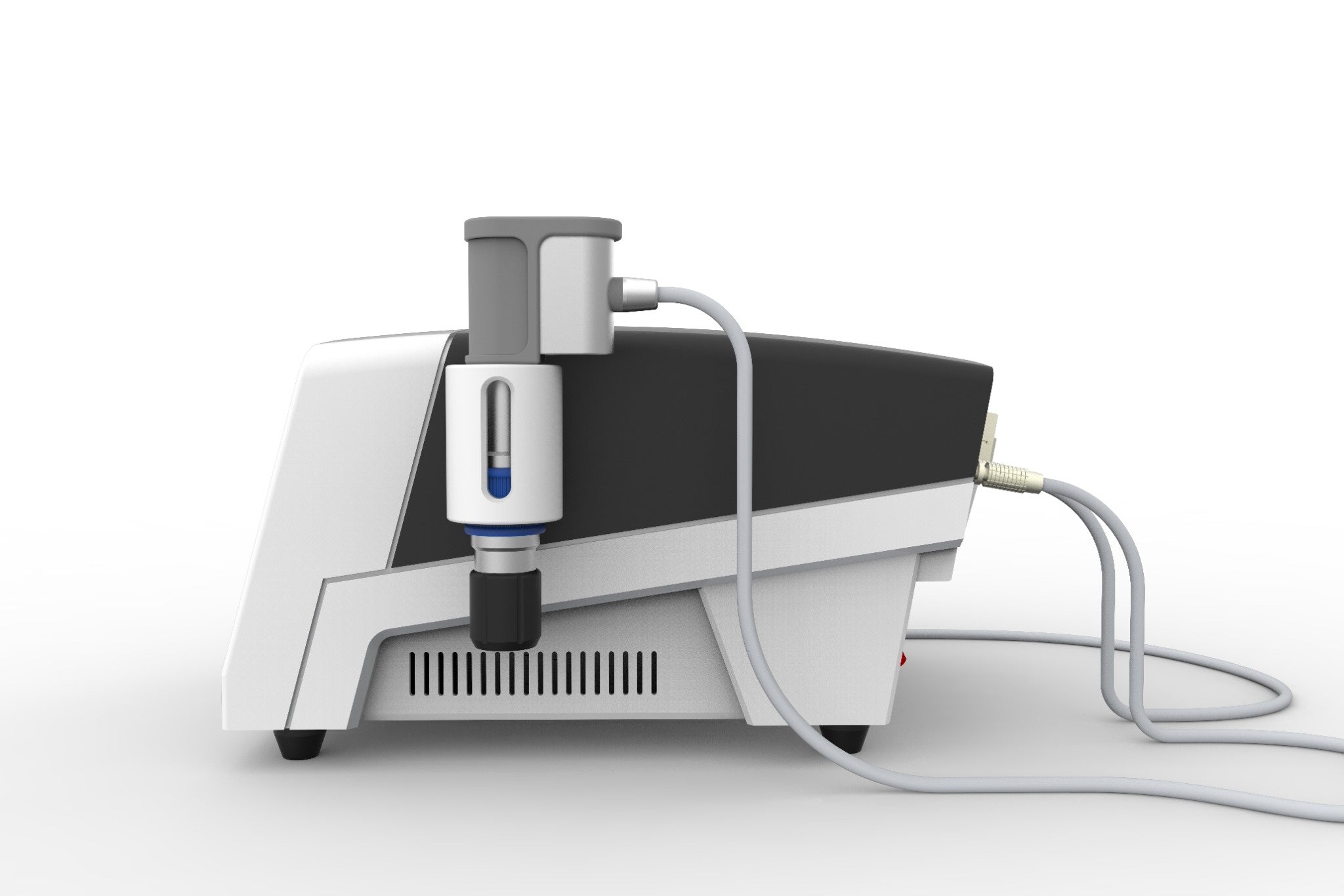

Shockwave Therapy — Pneumatic Ballistic Technology
The Ultrashock Master uses a high-performance compressor to generate pulse sound waves that are converted into precise ballistic shockwaves. With energy output up to 6 Bar and frequency up to 21 Hz, the pneumatic shockwave handle delivers powerful radial pressure waves that penetrate deep into soft tissue, bone-adjacent structures, muscles, and fascia — stimulating damaged tissues and activating the body’s natural repair mechanisms.
Shockwave Interface Features
- 10 body-part selection menus with recommended treatment parameters
- Manual parameter adjustment for individualised patient protocols
- Preload range: 800–3,000 impacts
- Energy range: 1–6 Bar
- Frequency range: 1–21 Hz
- 12 interchangeable treatment heads for comprehensive body coverage
Shockwave Treatment Protocols
| Area |
Parameters |
Impacts |
Sessions |
Interval |
| Hand / Wrist |
10 Hz / 3 Bar |
2,000 |
5–10 |
5–7 days |
| Elbow |
12 Hz / 4 Bar |
2,000–2,500 |
5–10 |
5–7 days |
| Pubic Symphysis |
10 Hz / 6 Bar |
2,000–2,500 |
5–10 |
5–7 days |
| Knee |
10 Hz / 4 Bar |
2,000 |
5–10 |
5–7 days |
| Foot / Ankle |
12 Hz / 3 Bar |
1,000 |
5–10 |
5–7 days |
| Shoulder |
10 Hz / 5 Bar |
2,000–2,500 |
5–10 |
5–7 days |
| Lumbar Region |
13 Hz / 6 Bar |
2,000–2,500 |
5–10 |
5–7 days |
| Hip |
18 Hz / 6 Bar |
2,000–2,500 |
5–10 |
5–7 days |
| Fat Accumulation |
13 Hz / 6 Bar |
2,000–2,500 |
5–10 |
5–7 days |
| ED Therapy |
10 Hz / 1.5 Bar |
1,500 |
2–3 |
Twice a week |

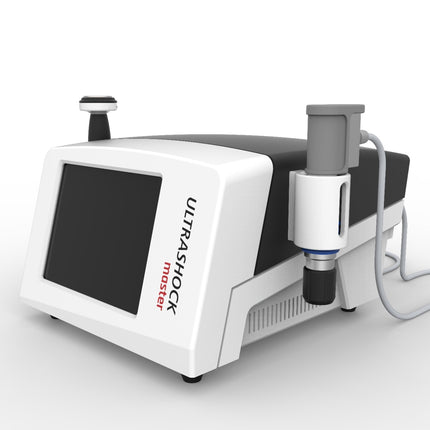

Ultrasound Therapy — Therapeutic 1 MHz Technology
The Ultrashock Master’s therapeutic ultrasound handle uses high-frequency sound waves at 1 MHz to create mechanical vibrations that penetrate deep into soft tissue. Transmitted through ultrasound gel, these waves produce both thermal and non-thermal effects — increasing heat and friction at the cellular level, promoting soft tissue healing, and increasing cellular metabolism. The result is accelerated tissue repair, reduced inflammation, and improved mobility for a broad range of soft tissue and musculoskeletal conditions.
Ultrasound Interface Features
- 10 treatment area selection menus with recommended parameters
- Treatment time: 1–60 minutes
- Energy range: 0.2–3 W/cm²
- Delivery modes: Continuous and Pulsed (1–10 Hz)
Ultrasound Treatment Protocols
-
Elbow: 12 minutes / 1.6 W/cm² / 3–5 sessions
-
Wrist: 10 minutes / 1.6 W/cm² / 4–8 sessions
-
Shoulder: 15 minutes / 1.6 W/cm² / 4–6 sessions
Shockwave Therapy Indications
- Tennis Elbow (Lateral Epicondylitis)
- Golfer’s Elbow (Medial Epicondylitis)
- Patellar Tendonitis (Jumper’s Knee)
- Shin Pain and Shin Splints
- Chronic Neck, Shoulder, and Back Pain
- Rotator Cuff Tendonitis
- Bursitis and Shoulder Impingement
- Achilles Tendon Pain
- Heel Pain and Plantar Fasciitis
- Trigger Point Muscle Tension
- Knee Osteoarthritis
- Cellulite and Fat Accumulation
- Erectile Dysfunction (Vascular Aetiology)
Ultrasound Therapy Indications
- Soft Tissue Injuries
- Chronic Strains and Sprains
- Myositis
- Bursitis
- Tendonitis and Tendon Sheath Inflammation
- Osteoarthritis
- Plantar Fasciitis
Treatment Highlights at a Glance
- Two complete therapy systems in one premium aluminium flight case
- Fully non-invasive — no surgery, no needles, no anaesthesia, no downtime
- 10 body-part selection menus for each therapy with recommended protocols
- 12 shockwave treatment heads for comprehensive body coverage
- Bullet life rated to 5 million impacts for high-volume clinical use
- Ultrasound continuous and pulsed modes for flexible treatment delivery
- Suitable for male and female patients across a wide age range
- Applicable across physiotherapy, sports medicine, rehabilitation, and aesthetic settings
Important Contraindications
The Ultrashock Master should not be used on open wounds or active infections, metastatic lesions, patients with impaired sensation, directly over metal implants, near pacemakers, or over the eyes, myocardium, spinal cord, gonads, kidneys, or liver. Do not use in cases of blood disorders, anticoagulant use, thrombosis, tumours, polyneuropathy, or during corticosteroid therapy. Ultrasound should not be applied over active epiphysis in children. Always consult clinical guidelines before treatment.
Usage and Maintenance
- Use gel or lubricants during all shockwave and ultrasound treatments
- Avoid allowing lubricants to enter the work head
- The shockwave bullet iron pillar should be replaced after approximately 2 million impacts
- The adapter is a consumable item and should be replaced periodically
- To clean the filter cup: place paper under the cup, raise the valve to drain liquid, unscrew to the left and tighten to the right
Frequently Asked Questions
What is the difference between shockwave therapy and ultrasound therapy?
Pneumatic shockwave therapy uses compressed air to generate high-energy ballistic pressure waves that penetrate deep into bone-adjacent tissue, tendons, ligaments, and fascia — making it highly effective for chronic musculoskeletal conditions, calcifications, and trigger points. Therapeutic ultrasound uses high-frequency sound waves (1 MHz) to create thermal and non-thermal effects in soft tissue, promoting cellular healing, reducing inflammation, and improving tissue extensibility. The Ultrashock Master provides both modalities in a single system, enabling practitioners to select the optimal therapy — or combine both — for each patient and indication.
Can both therapies be used in the same treatment session?
Yes. The Ultrashock Master’s independent interfaces allow practitioners to switch between shockwave and ultrasound therapy within a single session, treating different anatomical areas or combining modalities for enhanced outcomes on the same condition.
How long do the shockwave treatment heads last?
The shockwave bullet is rated to 5 million impacts, making the Ultrashock Master suitable for sustained, high-volume clinical operation. The bullet iron pillar should be replaced after approximately 2 million impacts as part of routine maintenance.
Does Wikbeauty provide OEM and ODM services?
Yes. Wikbeauty offers full OEM and ODM services including technology customisation, external case design and customisation, logo design and customisation, and package customisation. Contact our sales team to discuss your requirements.
Does Wikbeauty provide clinical training and after-sales support?
Yes. Wikbeauty provides comprehensive clinical training and ongoing after-sales support for all equipment purchases. Contact us to discuss your clinic’s specific requirements.
Two Therapies. One System. Complete Physiotherapy Coverage.
The Ultrashock Master is the professional choice for clinics that want to offer the full spectrum of non-invasive physiotherapy from a single premium system. By combining pneumatic shockwave therapy with therapeutic ultrasound, the Ultrashock Master delivers treatment outcomes and clinical versatility that no single-modality device can match.
Whether you are building a new physiotherapy offering, upgrading an existing system, or expanding your treatment menu, the Ultrashock Master delivers the clinical performance, patient outcomes, and operational reliability that professional practices demand.
Contact our sales team today to place your order or get a quote tailored to your clinic.
